Description

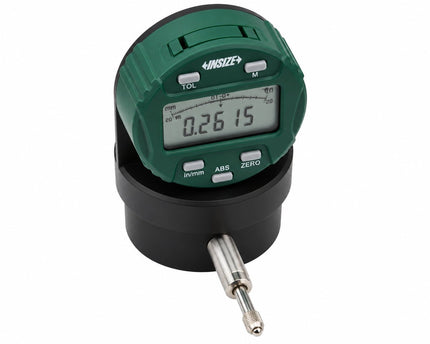

INSIZE 2118-10E Back Plunger Type Digital Indicator Flat Back 0.5" / 12.7 mm Range 0.0005" / 0.01 mm Resolution
The INSIZE 2118-10E Back Plunger Type Digital Indicator is a precision electronic measuring instrument designed for alignment, dimensional inspection, and quality control in machining, manufacturing, and workshop applications. Its back plunger mechanism allows measurements to be taken in tight or awkward spaces where conventional vertical plunger indicators may be difficult to position or read. Featuring a flat back casing, this digital indicator offers flexible positioning for a range of precision measurement tasks.
Key Features & Benefits
- Back plunger design for convenient measurement in restricted spaces
- Flat back casing for specialized positioning and mounting applications
- Measuring range of 0.5" / 12.7 mm
- Resolution of 0.0005" / 0.01 mm
- 320° rotatable digital display for improved viewing flexibility
- Dual digital and analog scale display for convenient measurement reading
- Inch and metric unit conversion
- Absolute and incremental measurement modes
- Tolerance setting with Go/No-Go evaluation
- Maximum, minimum, and total indicator reading (TIR) modes
- CR2032 battery power supply with automatic power-off function
- Supports optional data transfer through an output cable
- Designed to comply with ASME B89.1.10M-2001
Technical Specifications
- Brand: INSIZE
- Model: 2118-10E
- Product Type: Back Plunger Type Digital Indicator
- Housing Style: Flat Back
- Measuring Range: 0.5" / 12.7 mm
- Resolution: 0.0005" / 0.01 mm
- Display Rotation: 320°
- Display Type: Digital and analog scale
- Measurement Units: Inch / Metric
- Measurement Modes: Absolute / Incremental
- Tolerance Function: Go/No-Go
- Additional Modes: Maximum / Minimum / TIR
- Battery: CR2032
- Power Saving: Automatic power-off
- Data Output: Optional output cable
- Applicable Standard: ASME B89.1.10M-2001
Applications
- Precision dimensional measurement and inspection
- Machine setup and alignment
- Workpiece runout and TIR measurement
- Manufacturing and production quality control
- Machining and engineering workshops
- Fixture and component inspection
- Go/No-Go tolerance verification
INSIZE precision measuring instruments provide practical solutions for dimensional inspection, machine setup, and industrial quality control. The 2118-10E Back Plunger Type Digital Indicator combines flexible positioning, a rotatable display, and versatile measurement functions for demanding workshop and manufacturing environments.
