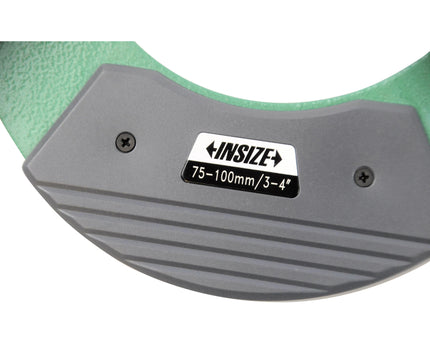

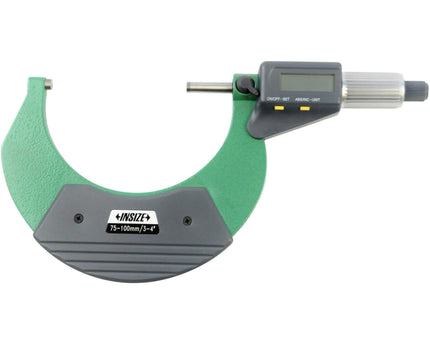

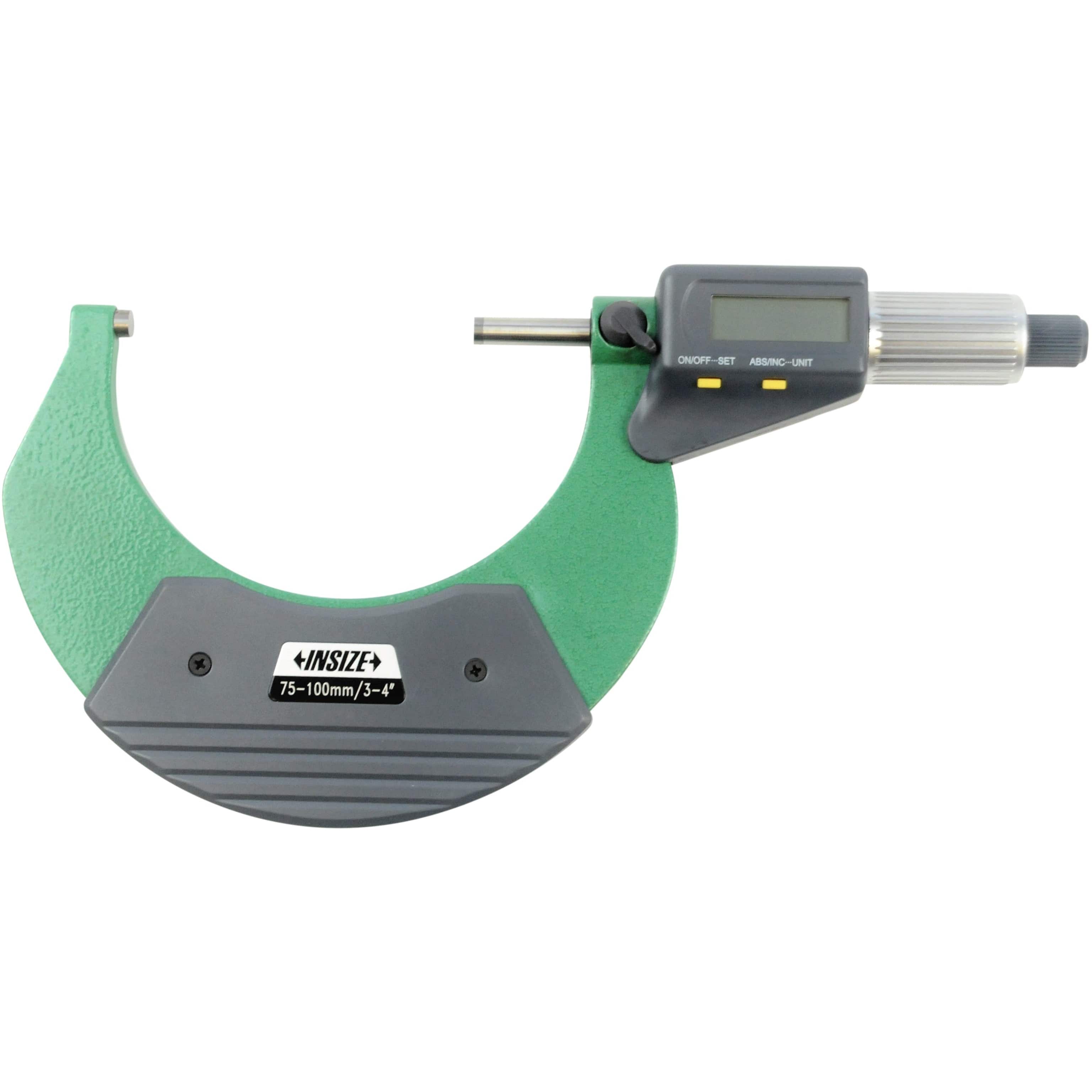

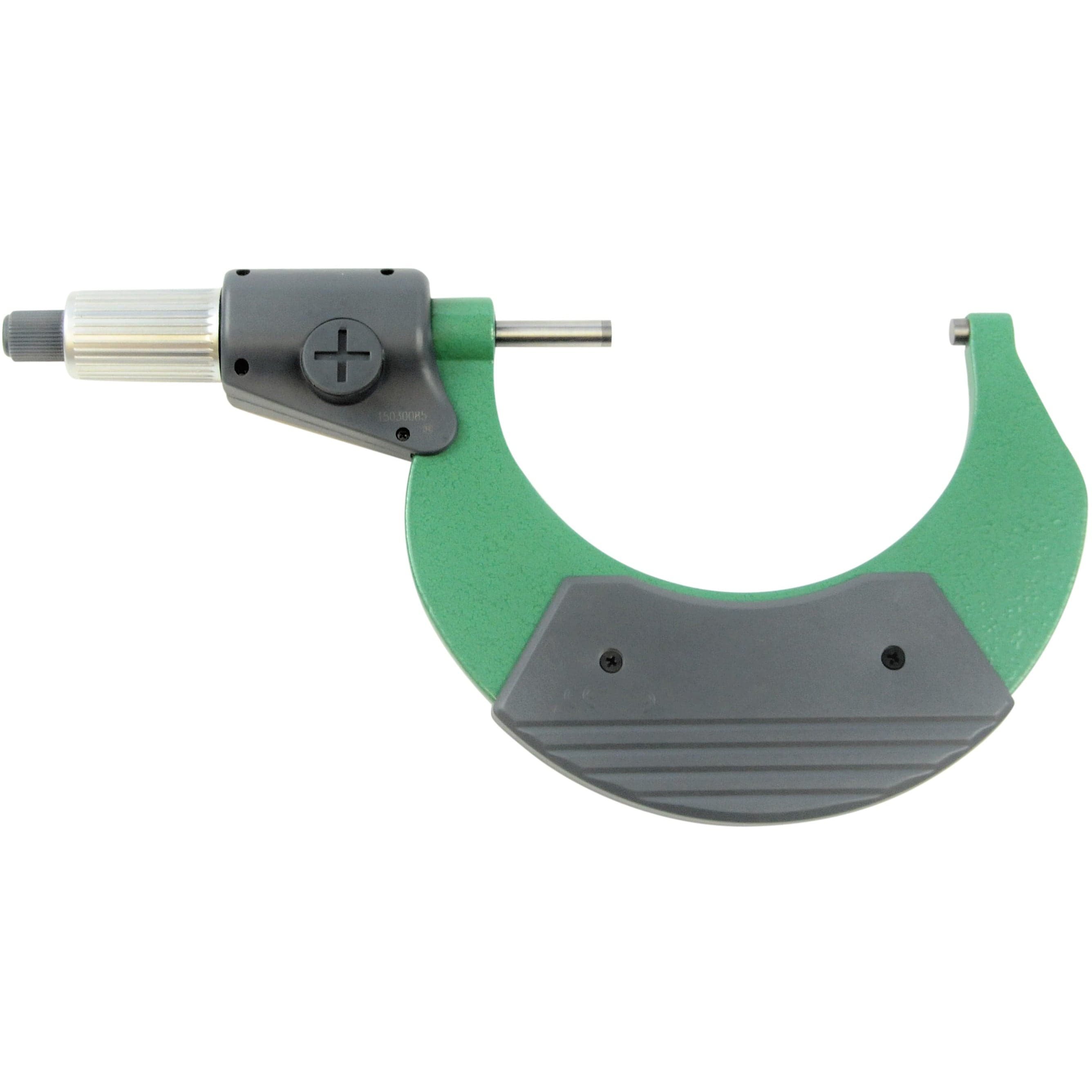

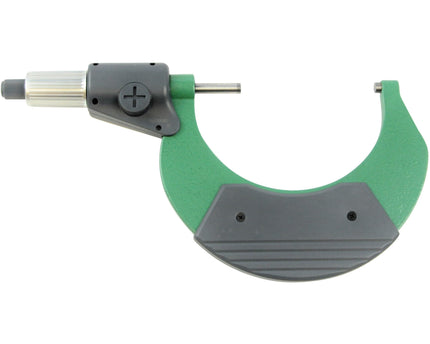

Insize Digital Outside Micrometer 75-100mm/3-4" Range Series 3109-100A
The Insize 75–100 mm Digital Outside Micrometer is a precision measuring instrument designed for accurate external measurements in machining, inspection, and quality-control applications. Built to DIN 863 standards, it combines robust construction with a reliable digital ABSOLUTE measuring system for consistent and repeatable results.
Specifications :
- Part No.: 3109-100A
- Measuring Range: 75–100 mm
- Resolution: 0.01 mm / 0.0005"
- Manufactured in accordance with DIN 863

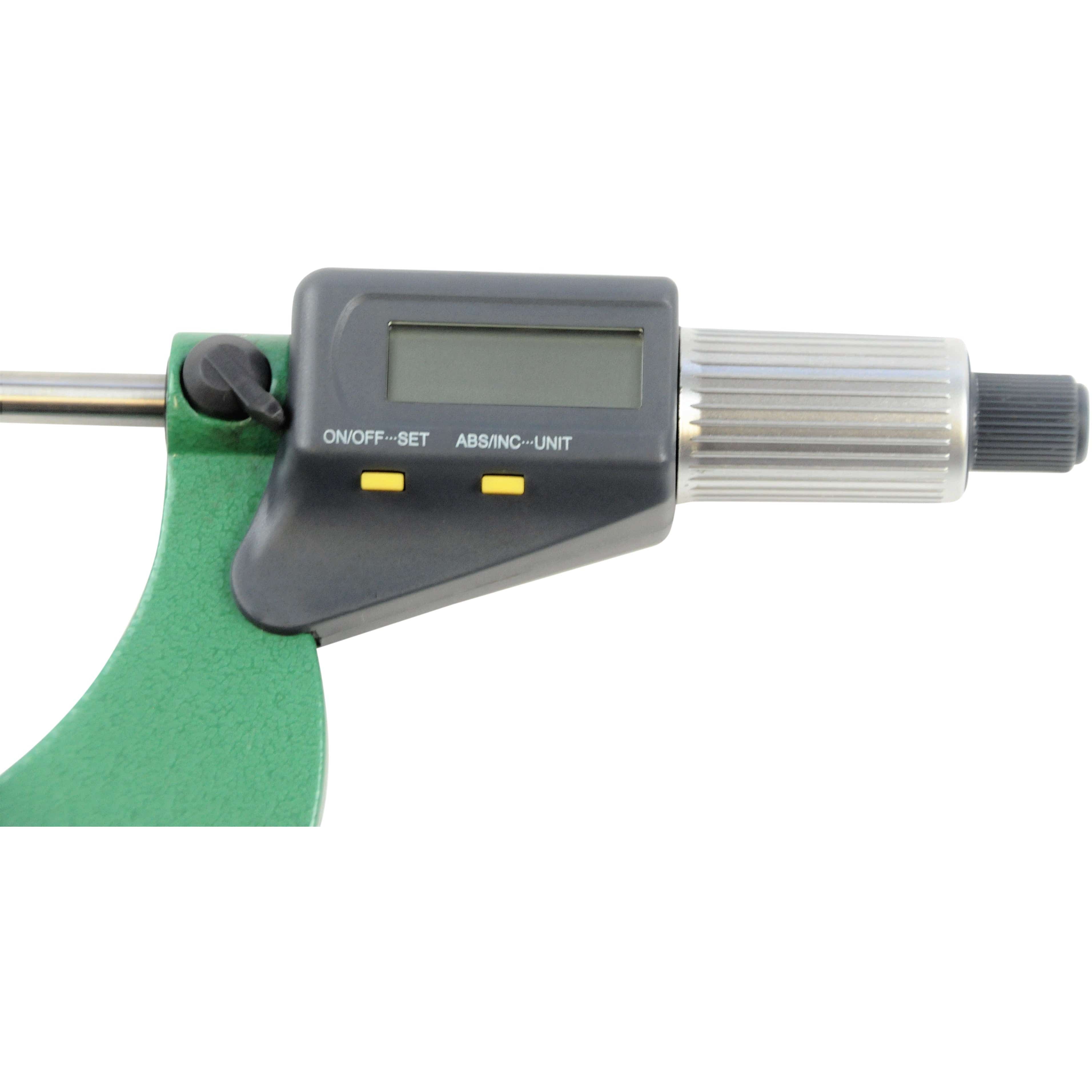

- Button functions: on/off, set, mm/inch, ABS/INC
- Hardened, ground, and lapped spindle thread for high accuracy

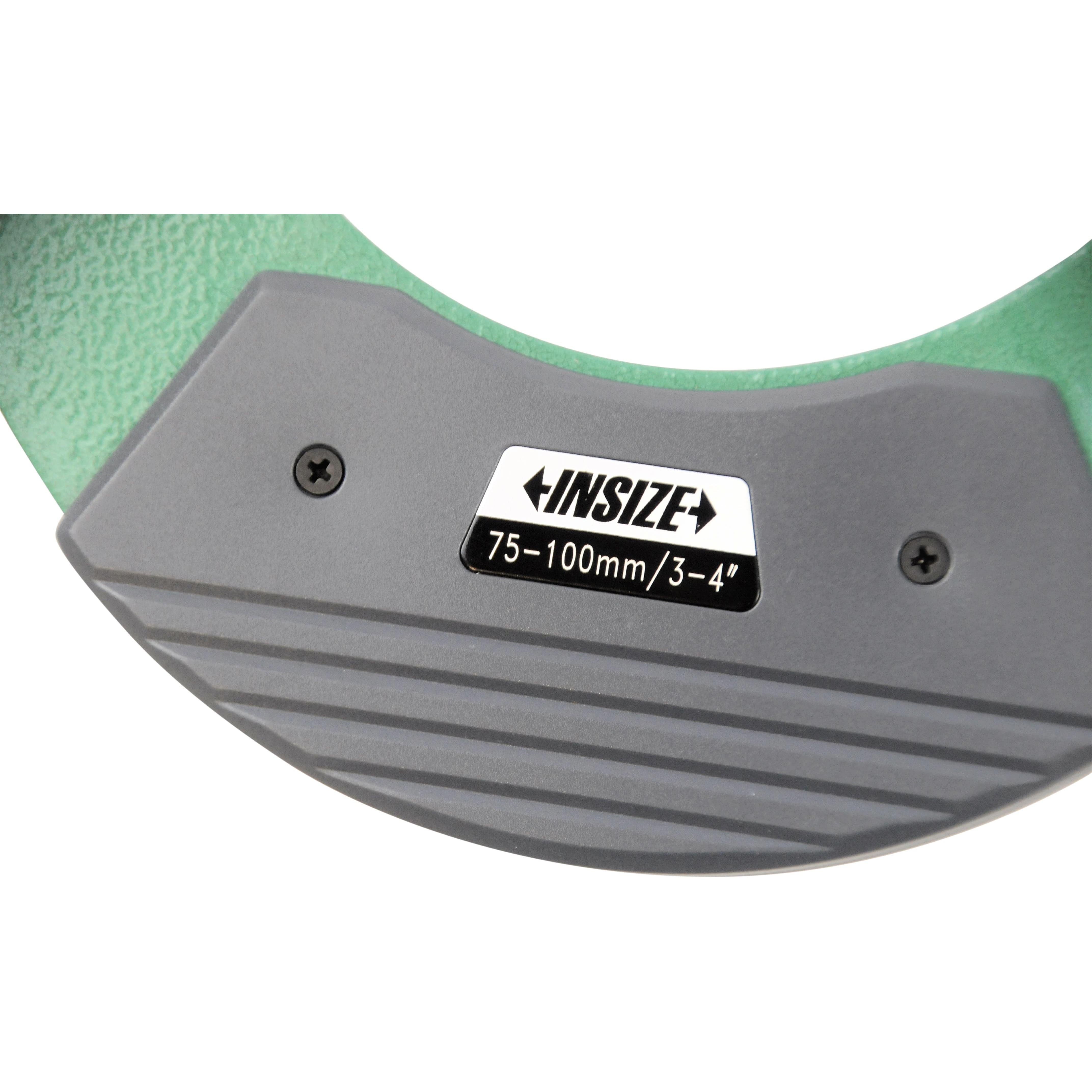

- Baked enamel finish frame
- Satin chrome finish barrel and thimble
- ABSOLUTE measuring system with inch/metric conversion

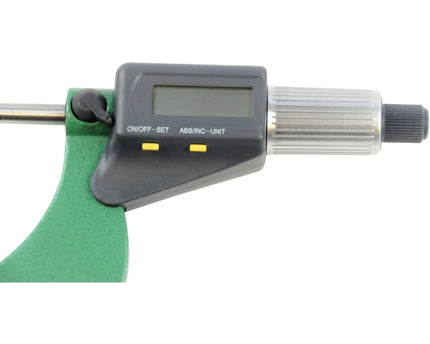

- Large, easy-to-read LCD display
- Clear graduations on a satin chrome surface for smooth operation
- Quick and easy adjustment
- Automatic power-off function
- Carbide measuring face
- Spindle lock
- Ratchet stop for consistent measuring force

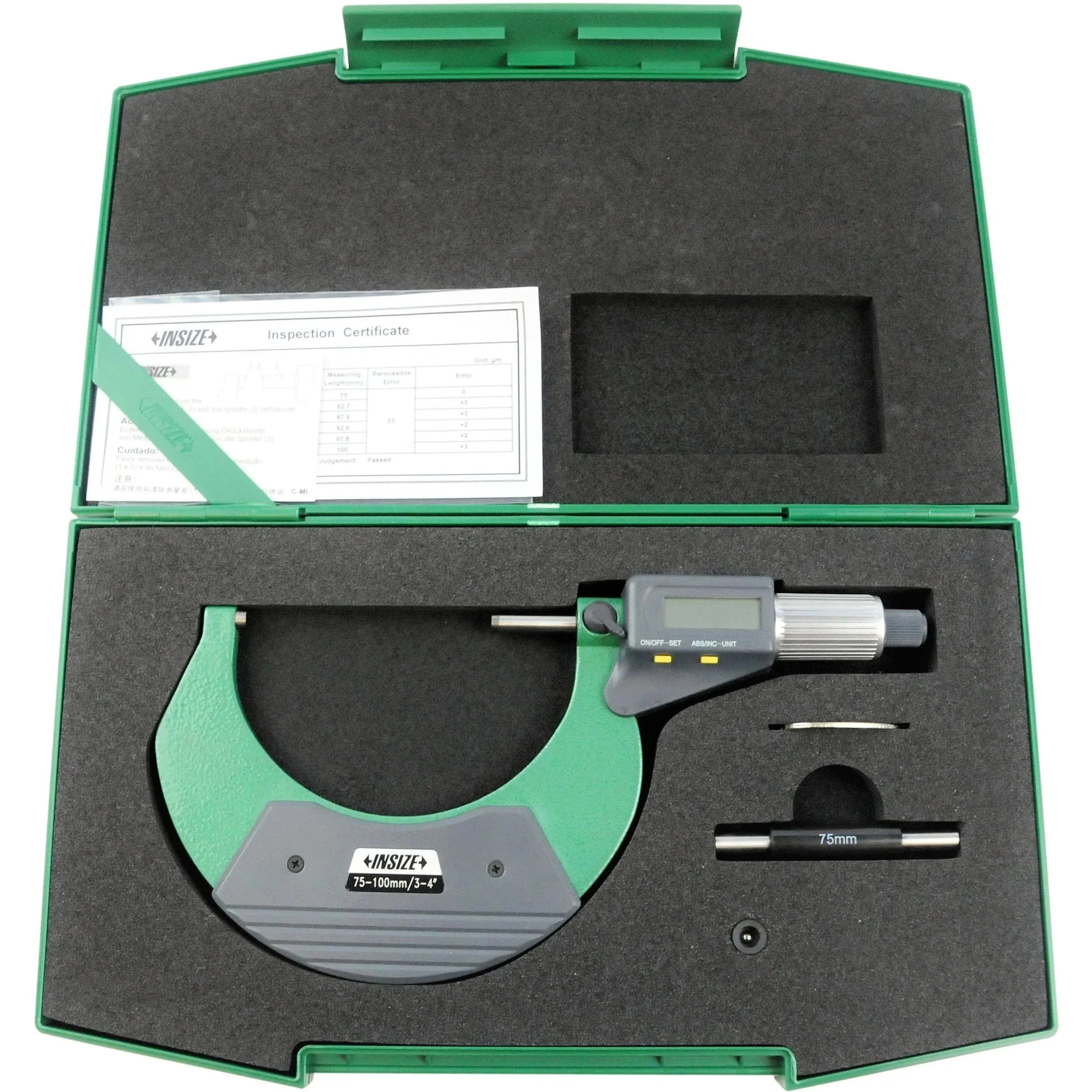

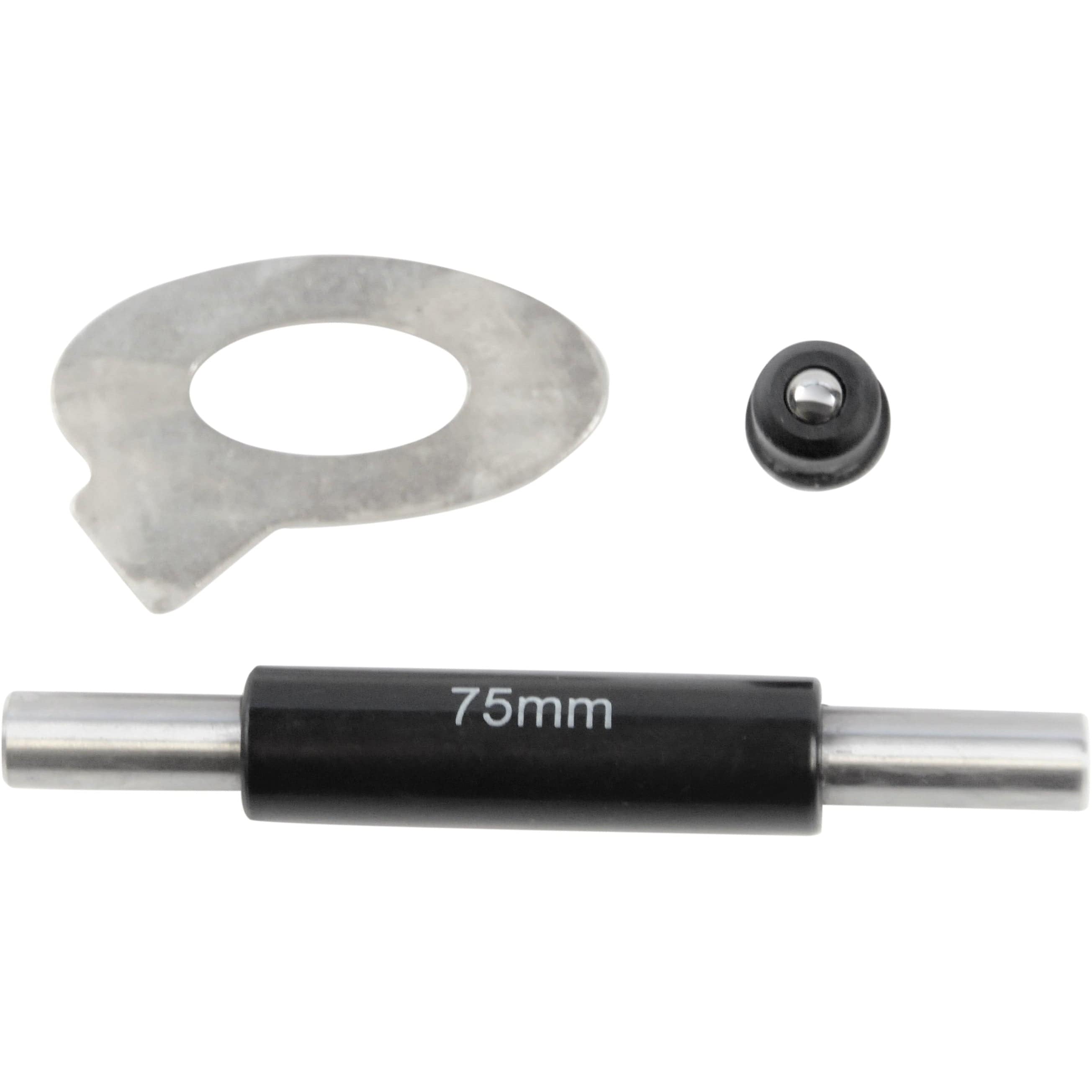

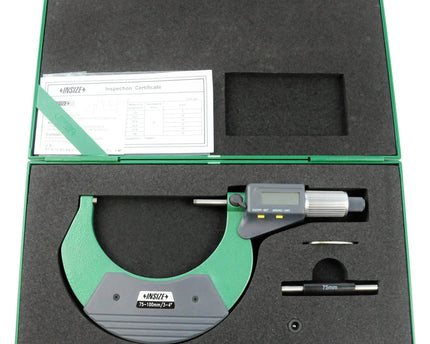

Includes :
- Zero adjusting wrench
- Spherical anvil

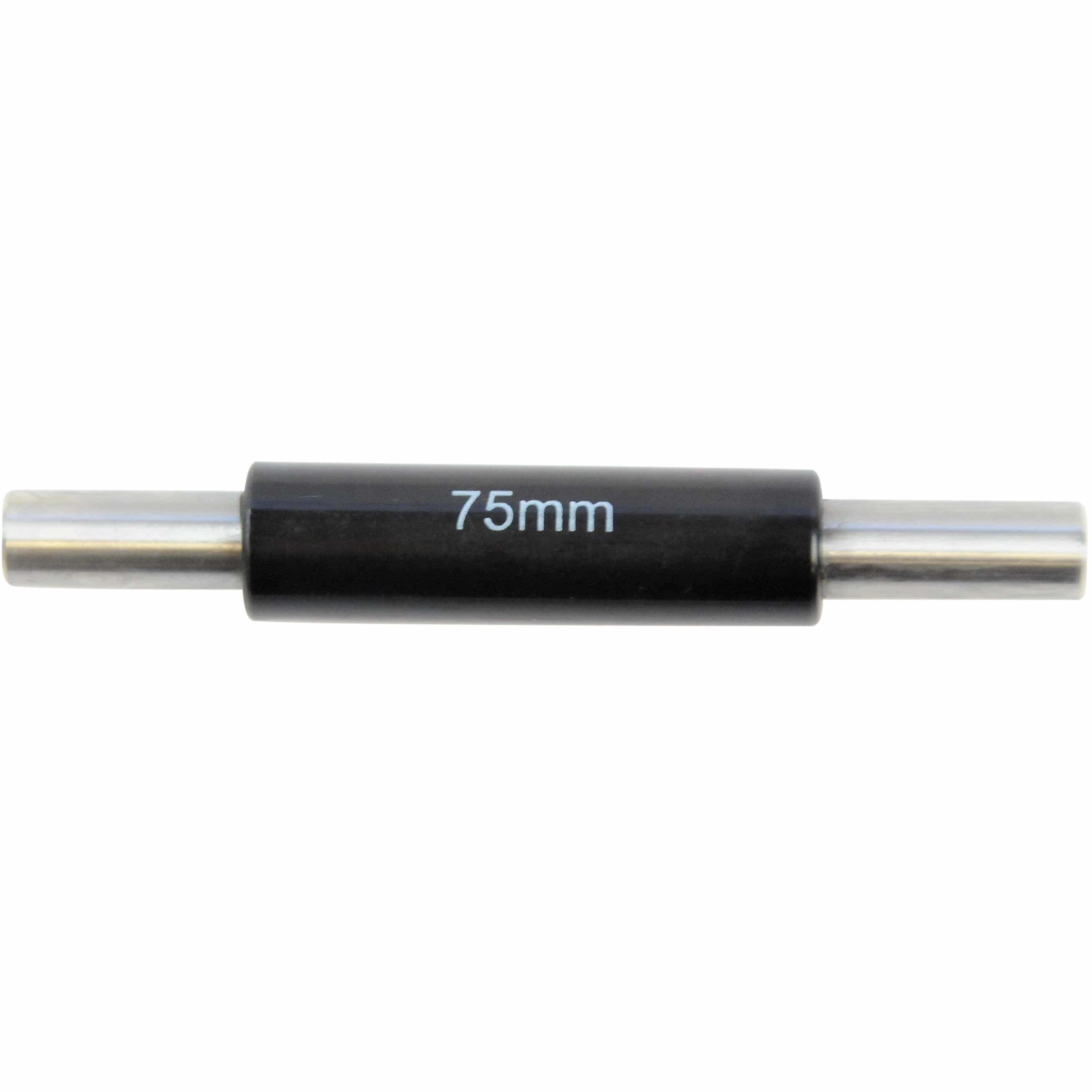

- 75 mm calibration rod

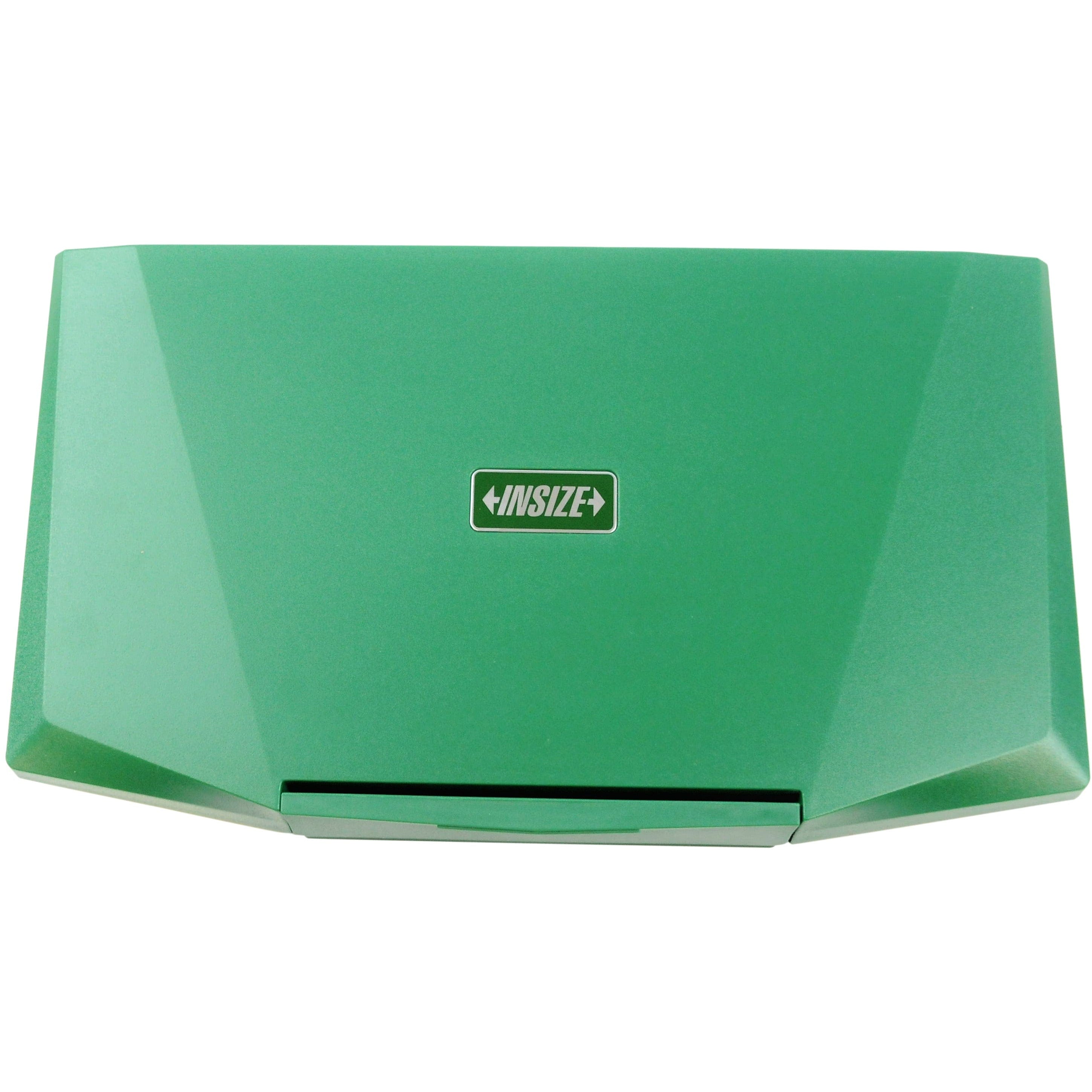

- Custom-styled protective case
Well-designed and durable, this high-precision digital outside micrometer is suitable for a wide range of measuring tasks. Insize measuring instruments are trusted for their accuracy, ease of use, and long service life in demanding workshop environments.
