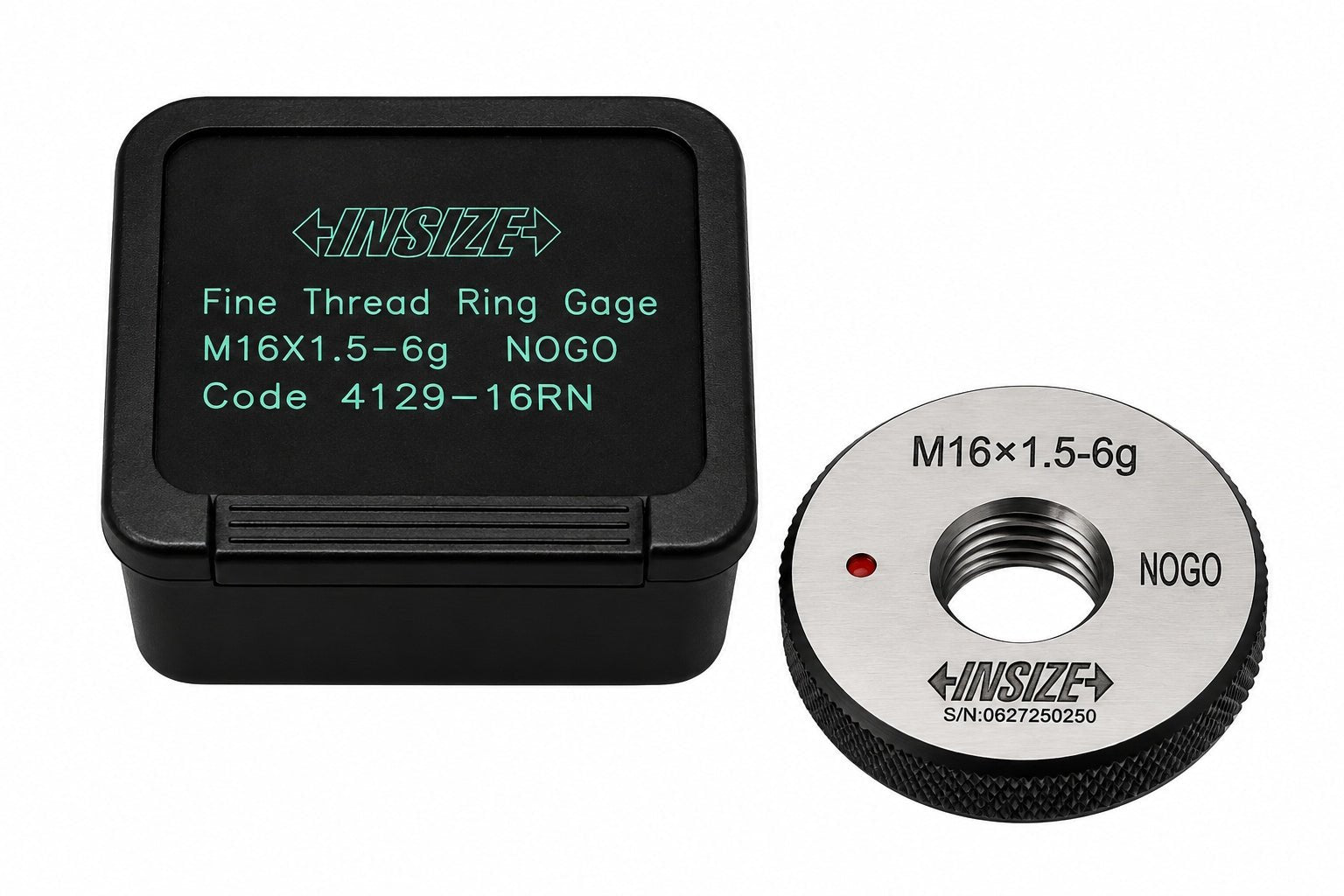

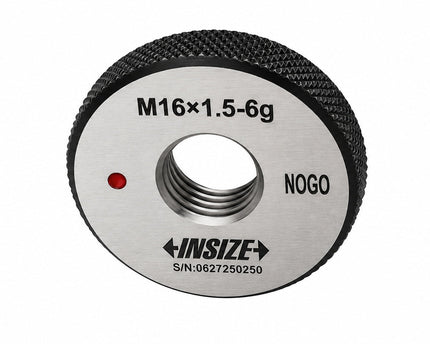

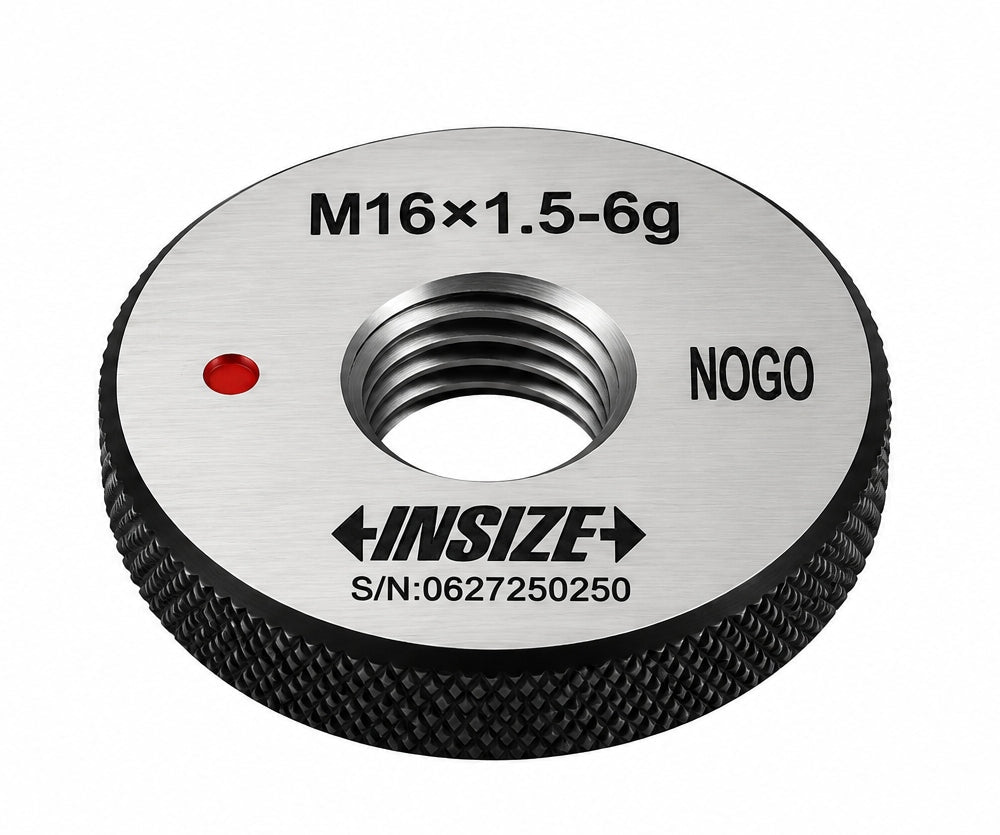

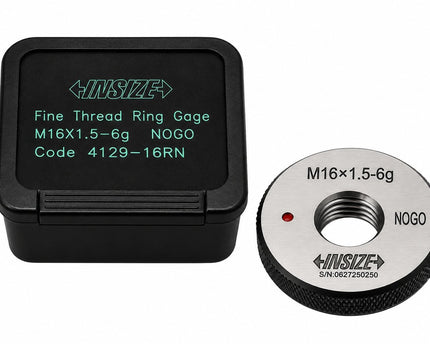

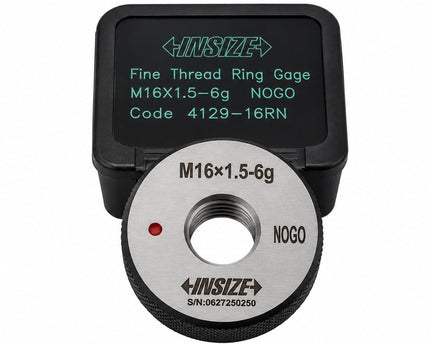

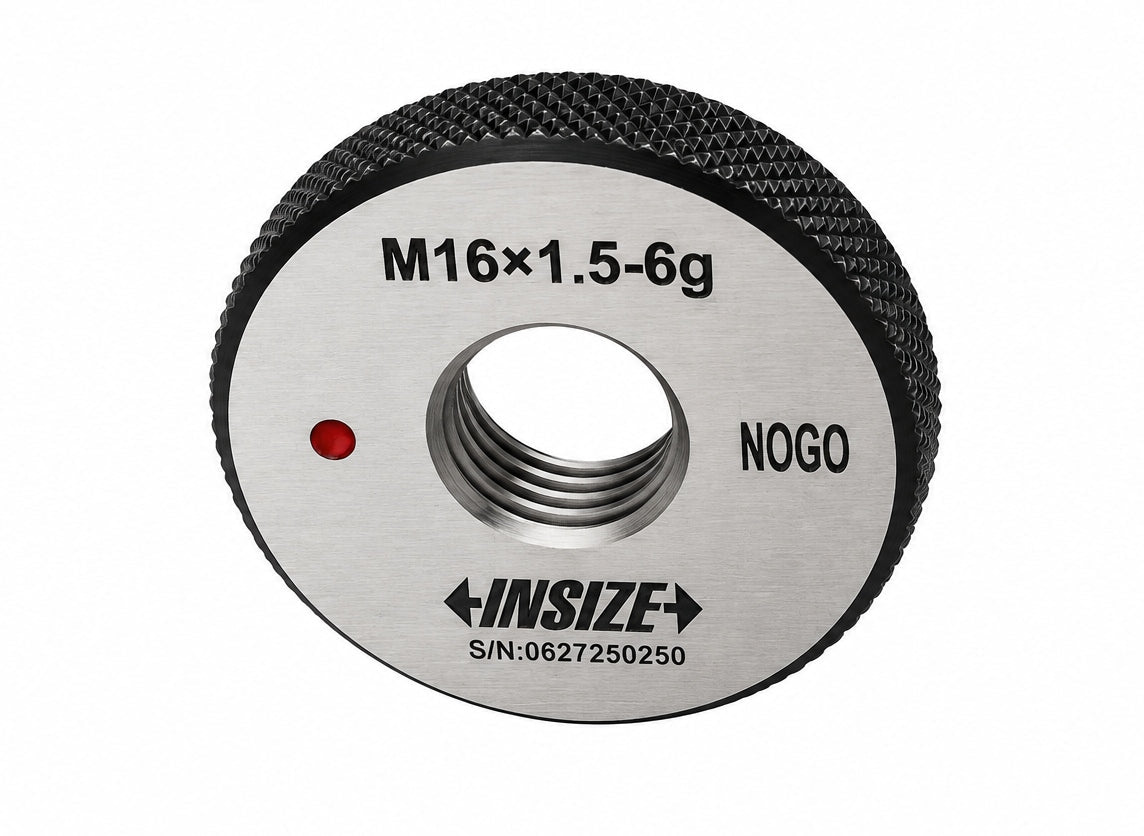

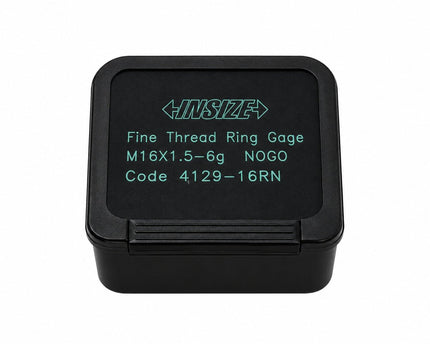

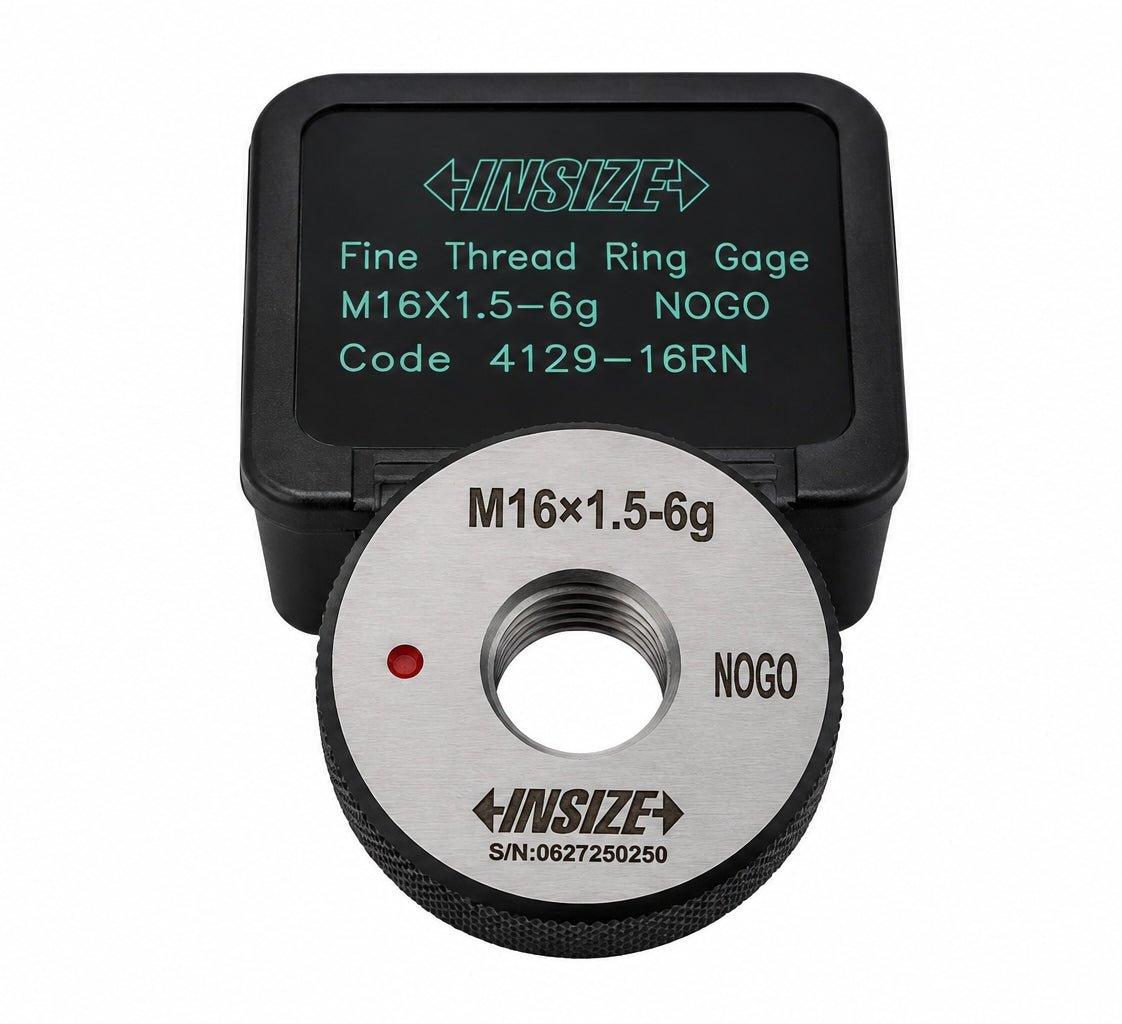

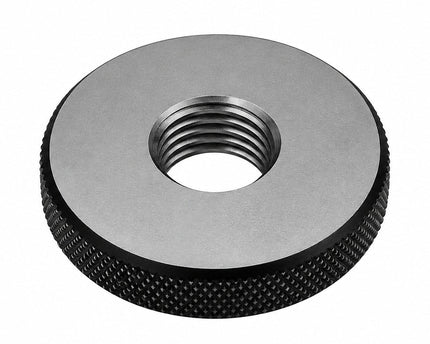

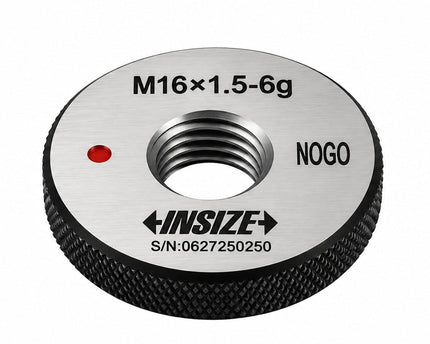

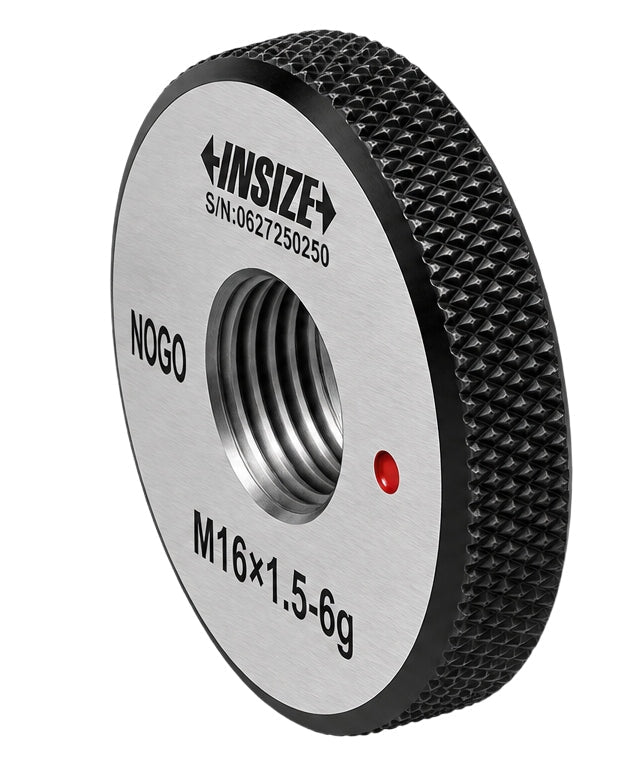

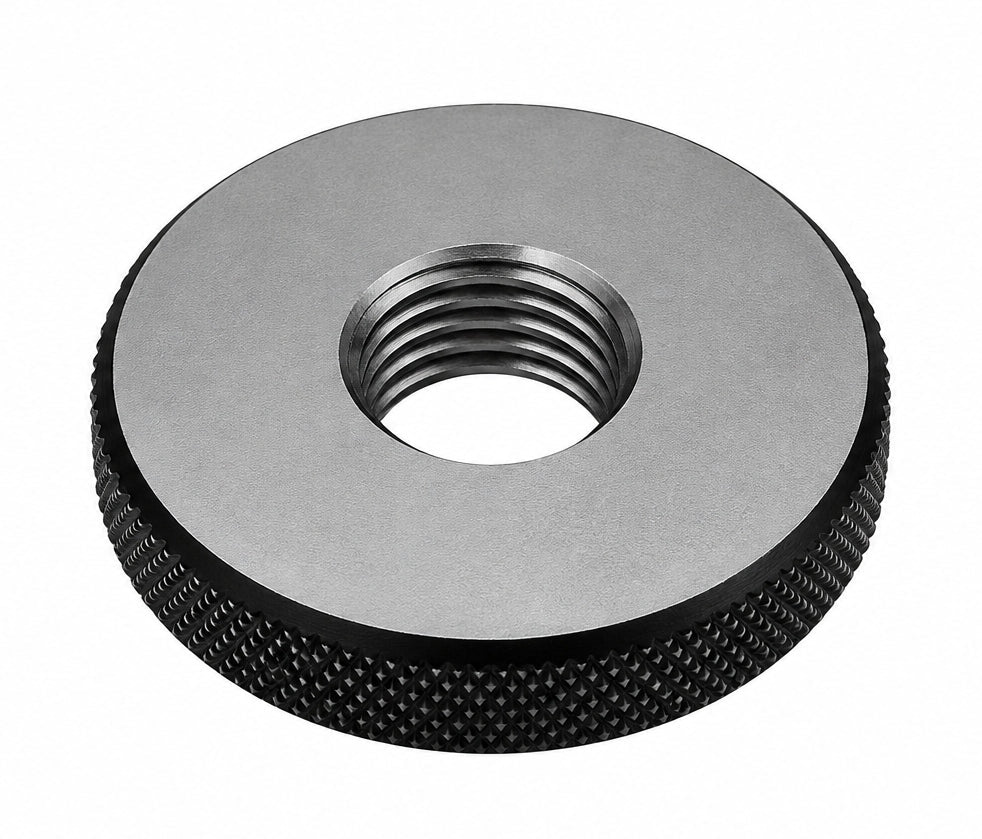

INSIZE 4129-16RN Metric Fine Thread Ring Gauge M16 x 1.5 Class 6g NOGO
The INSIZE 4129-16RN Metric Fine Thread Ring Gauge is a precision NOGO gauge designed for inspecting external M16 x 1.5 metric fine threads. Suitable for machining, manufacturing, and quality assurance applications, this gauge helps verify that threaded components meet the specified Class 6g tolerance requirements for reliable thread inspection.
Part of the INSIZE 4129 series, this metric fine thread ring gauge is designed in accordance with ISO 1502 standards for thread gauging. It is supplied with a manufacturer inspection certificate to support dimensional verification and quality assurance processes. The INSIZE 4129-16RN is suitable for workshop, production, and industrial metrology applications requiring dependable external thread inspection.
Key Features & Benefits
- Precision metric fine thread ring gauge
- NOGO gauge for external thread inspection
- Suitable for M16 x 1.5 metric fine threads
- Designed for Class 6g thread tolerance
- Manufactured in accordance with ISO 1502
- Part of the INSIZE 4129 metric thread gauge series
- Supports thread conformity verification and quality control
- Supplied with manufacturer inspection certificate
- Suitable for machining and manufacturing inspection
- Ideal for workshop and industrial metrology applications
Technical Specifications
- Brand: INSIZE
- Part Number: 4129-16RN
- Product Type: Metric Fine Thread Ring Gauge
- Gauge Type: NOGO
- Nominal Thread Diameter: M16
- Thread Pitch: 1.5 mm
- Thread Size: M16 x 1.5
- Thread Tolerance Class: 6g
- Applicable Standard: ISO 1502
- Series: 4129
- Inspection Certificate: Manufacturer inspection certificate included
- Application: External thread inspection
Applications
- External metric fine thread inspection and verification
- M16 x 1.5 thread checking
- Thread tolerance and conformity testing
- Precision machining quality control
- Manufacturing and engineering inspection
- Fastener and threaded component verification
- Production line quality assurance
- Workshop and industrial metrology
INSIZE precision thread gauges provide reliable solutions for inspecting threaded components across manufacturing, engineering, and industrial quality control environments. Designed in accordance with ISO 1502, the 4129 series supports accurate metric fine thread verification.
The INSIZE 4129-16RN Metric Fine Thread Ring Gauge provides dependable NOGO inspection for M16 x 1.5 Class 6g external threads and is available from Twin Eagle Imports for precision thread inspection and quality control applications.
