Precision measurement is the foundation of successful machining and manufacturing. Even the smallest variation in a bore diameter can affect component performance, assembly accuracy, and product reliability. That's why a mechanical bore gauge remains one of the most valuable tools in workshops, machine shops, and quality control departments.

Whether you're measuring engine cylinders, hydraulic components, bearing housings, or precision-machined parts, a mechanical bore gauge provides accurate internal diameter measurements that help maintain tight tolerances.

For professionals building a complete inspection toolkit, precision measuring instruments such as the Insize Thickness Gauge 0–10mm x 0.05mm Range Series 2862-102 complement bore gauges by providing reliable thickness measurements for sheet metal, plastics, paper, and other materials. Together, they support comprehensive quality inspection across a wide range of manufacturing applications.

What Is a Mechanical Bore Gauge?

A mechanical bore gauge is a precision measuring instrument designed to measure the internal diameter of holes, cylinders, and bores. Unlike external measuring tools such as calipers, bore gauges reach inside a workpiece to determine whether its dimensions meet specified tolerances.

Mechanical bore gauges are widely used in:

• Automotive engine rebuilding

• Aerospace manufacturing

• Precision machining

• Tool and die production

• Hydraulic equipment manufacturing

• General engineering

• Quality assurance laboratories

Because they provide highly repeatable measurements, they are essential for inspecting machined components before assembly.

Why Accurate Bore Measurement Matters

Many industrial components rely on precise internal diameters for proper operation.

Examples include:

• Engine cylinders

• Bearing seats

• Bushings

• Valve bodies

• Gear housings

• Pump components

Even slight dimensional errors can result in:

• Poor fit

• Increased wear

• Leakage

• Excessive vibration

• Reduced efficiency

• Premature equipment failure

Using a mechanical bore gauge helps manufacturers identify dimensional issues before components leave the workshop.

How a Mechanical Bore Gauge Works

A mechanical bore gauge compares the inside diameter of a bore against a calibrated reference.

The process generally involves:

1. Setting the gauge using a master ring gauge or micrometer.

2. Inserting the gauge into the bore.

3. Rocking the gauge gently until the minimum reading is found.

4. Recording the measurement.

5. Comparing the reading with the required specification.

This simple method provides fast, repeatable, and highly accurate results.

Key Benefits of a Mechanical Bore Gauge

High Accuracy

Mechanical bore gauges are designed for precise internal measurements, making them ideal for close-tolerance machining.

Repeatable Results

Consistent measurements reduce inspection errors and improve production quality.

Easy Operation

Once calibrated, bore gauges are straightforward to use, even during repetitive inspections.

Durable Construction

Mechanical models are built to withstand demanding workshop environments while maintaining accuracy.

Cost-Effective

Compared with more advanced electronic systems, mechanical bore gauges offer excellent value for routine inspection tasks.

Common Applications

Mechanical bore gauges are suitable for inspecting:

• Engine blocks

• Cylinder liners

• Hydraulic cylinders

• Bearing housings

• Machine tool components

• Precision bushings

• Industrial pumps

• Gearboxes

• Compressor housings

They are commonly found in manufacturing plants, maintenance workshops, and inspection laboratories.

Mechanical Bore Gauge vs Digital Bore Gauge

Both types deliver accurate measurements, but each offers unique advantages.

Mechanical Bore Gauge

Advantages

• No batteries required

• Highly reliable

• Durable

• Cost-effective

• Easy to maintain

Digital Bore Gauge

Advantages

• Digital display

• Faster reading

• Electronic data output

• Reduced reading errors

For many workshops, mechanical bore gauges remain the preferred option because of their simplicity, durability, and long service life.

Building a Complete Inspection System

While bore gauges measure internal diameters, many manufacturing applications also require thickness inspection.

A dedicated thickness gauge allows operators to measure materials such as:

• Sheet metal

• Plastic components

• Paper products

• Rubber

• Composite materials

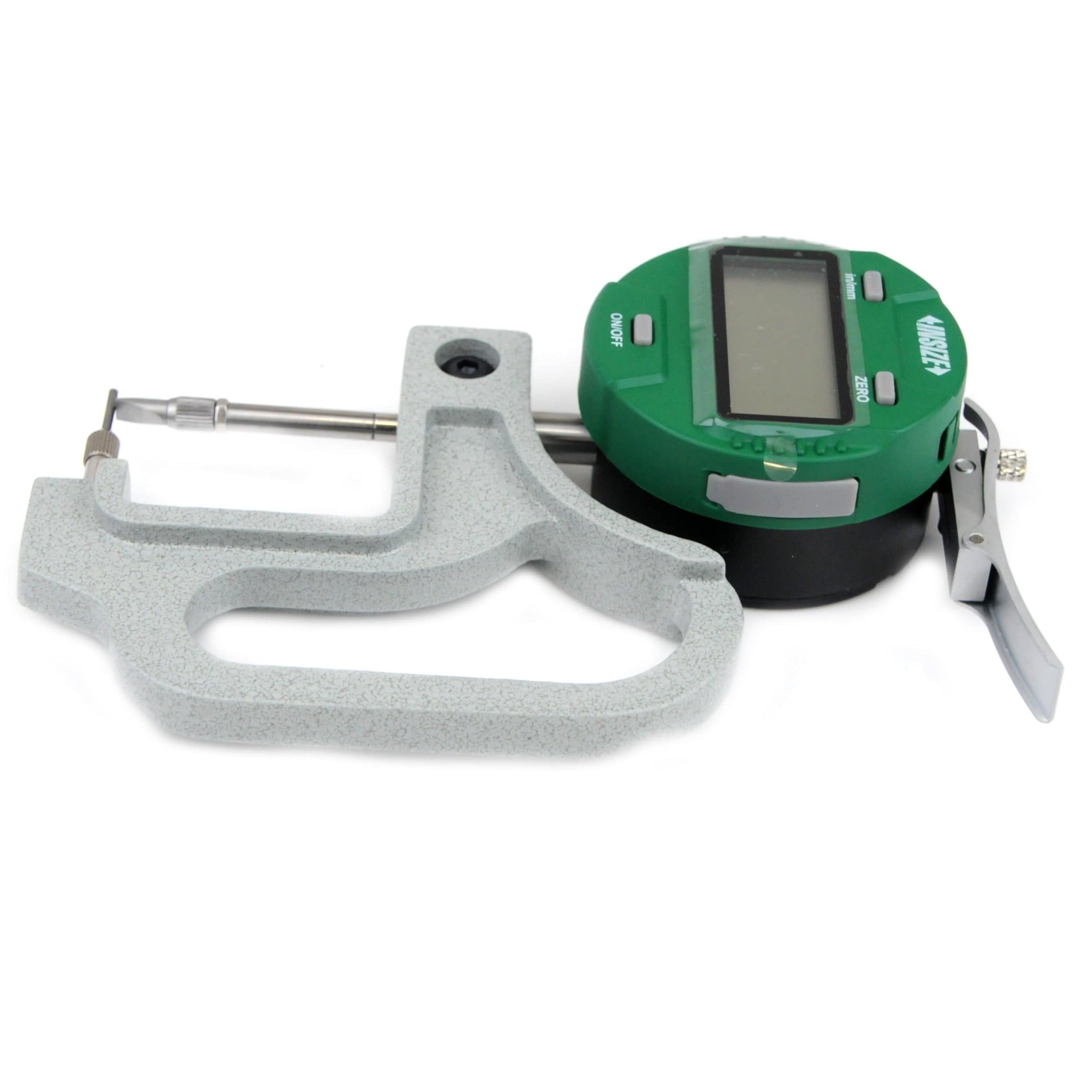

The Insize Thickness Gauge 0–10mm x 0.05mm Range Series 2862-102 features a 0–10 mm measuring range, 0.05 mm graduation, ±0.1 mm accuracy, and a 60 mm arm length, making it suitable for workshop inspection and quality control tasks.

Using both bore gauges and thickness gauges ensures comprehensive dimensional verification throughout production.

Tips for Accurate Measurements

To achieve the best results:

• Calibrate before use.

• Clean measuring surfaces.

• Remove debris from the bore.

• Measure at multiple positions.

• Avoid excessive measuring force.

• Store instruments in protective cases.

• Check calibration regularly.

These practices help maintain accuracy and extend tool life.

Choosing the Right Mechanical Bore Gauge

When selecting a bore gauge, consider:

Measuring Range

Choose a gauge that covers the internal diameters you measure most frequently.

Accuracy

Higher precision is essential for close-tolerance applications.

Build Quality

Hardened contact points and durable construction improve reliability.

Ease of Calibration

Simple calibration procedures increase productivity.

Intended Application

Select a model designed for automotive, industrial, or precision engineering work depending on your requirements.

Best Practices for Maintenance

Regular maintenance ensures long-term performance.

• Wipe the gauge clean after each use.

• Protect measuring contacts from impact.

• Store in a dry environment.

• Inspect moving parts periodically.

• Recalibrate according to your quality management schedule.

Proper care minimizes wear and ensures consistent measurements.

A mechanical bore gauge remains one of the most reliable tools for accurate internal diameter measurement. Its precision, durability, and ease of use make it indispensable for machining, manufacturing, and quality control.

For a complete inspection solution, combine a bore gauge with complementary precision tools such as the Insize Thickness Gauge 0–10mm x 0.05mm Range Series 2862-102, which provides dependable thickness measurement across a wide range of materials. Together, these instruments help manufacturers maintain tight tolerances, improve product quality, and reduce costly production errors.
